WTH8-25 Household Modular Contactor 25A
Specifications
| 参数 Parameter | 数值 Value |
|---|---|
| Rated Current (额定电流) | 25A |
| Rated Voltage (额定电压) | AC 50/60Hz, up to 400V |
| Standard (执行标准) | IEC/EN61095, IEC60947-4-1 |
| Mounting (安装方式) | DIN Rail (导轨安装) |
| Mechanical Life (机械寿命) | 50,000+ operations |
| Electrical Endurance (电气寿命) | 100,000+ cycles |
| Arc Extinction (灭弧时间) | <15ms |
| Conductive Material (导电材料) | 96%+ purity silver alloy |
Features
- Silver alloy contact for superior conductivity and arc resistance (银合金触点,导电性能优异)
- Pure copper coil for stable electromagnetic performance (纯铜线圈,电磁性能稳定)
- Flame retardant housing for enhanced safety (阻燃外壳,安全可靠)
- DIN rail mounting for easy installation (DIN导轨安装,便捷快速)
- Suitable for lighting, heating, ventilation and pump control (适用于照明、供暖、通风和水泵控制)

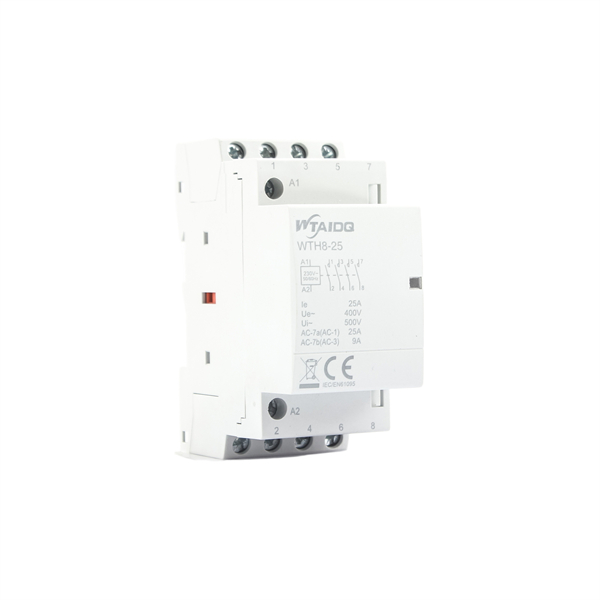

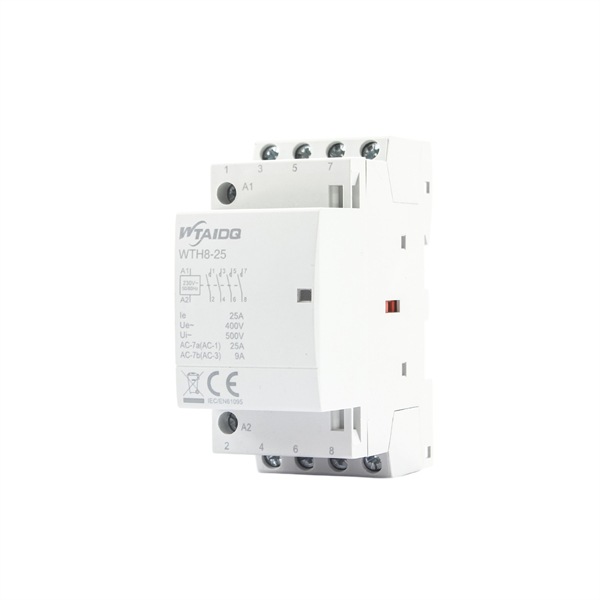

Product Detail Images




- 25a Contactor
- Ac Contactor
- Contactor
- contactor switch
- electrical contactor
- household contactor
- Magnetic Contactor
- Modular Contactor
- Motor Contactor
