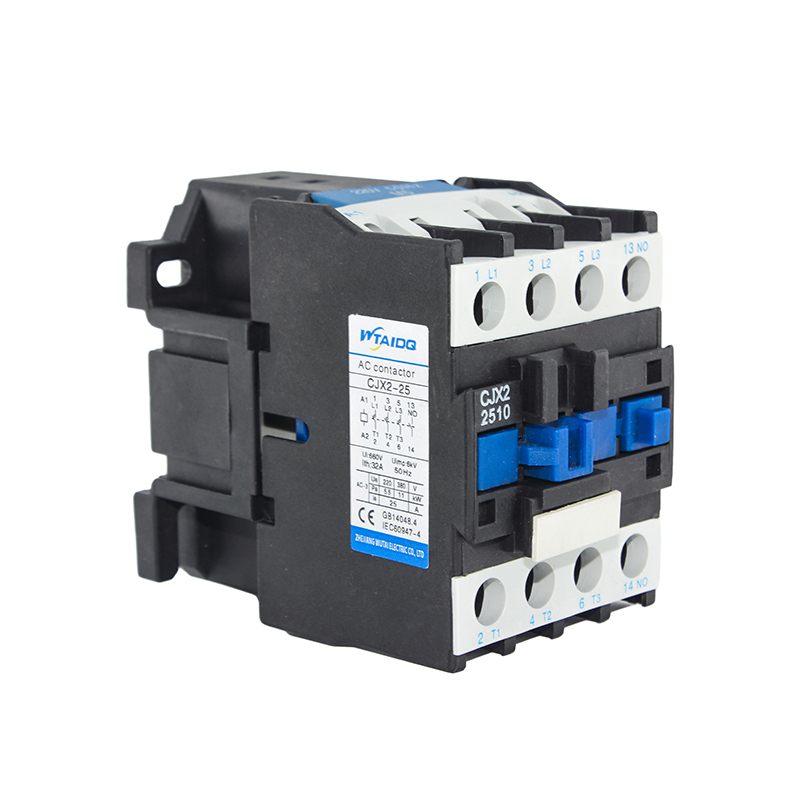

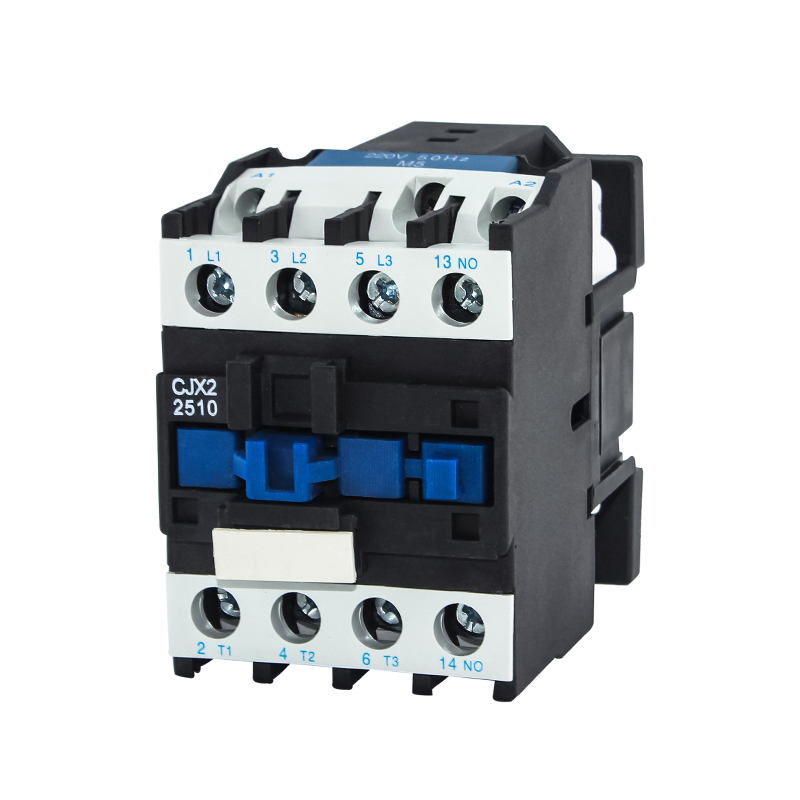

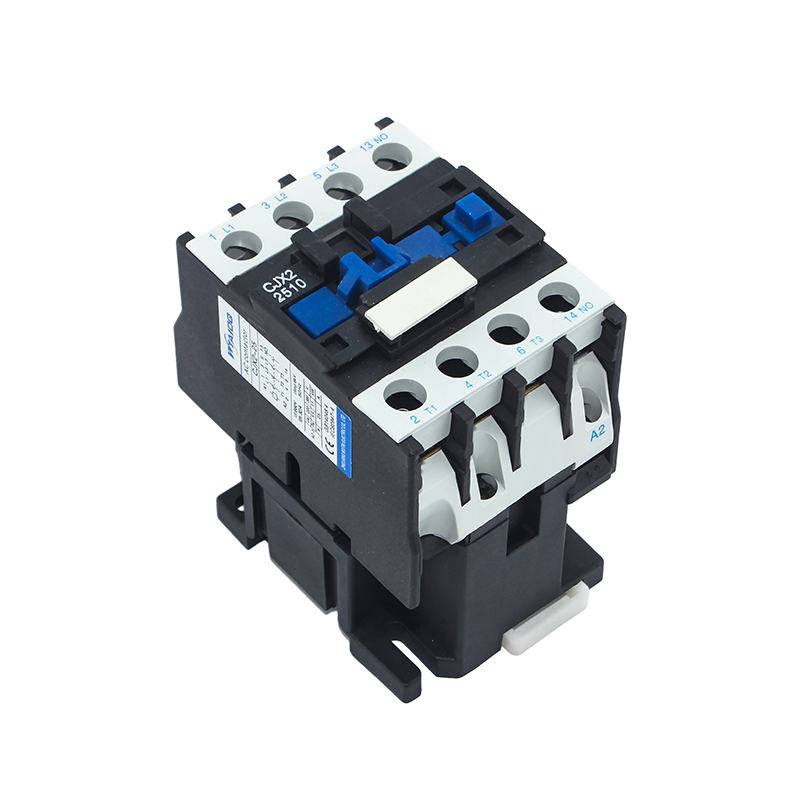

CJX2-2510 AC Contactor 25A

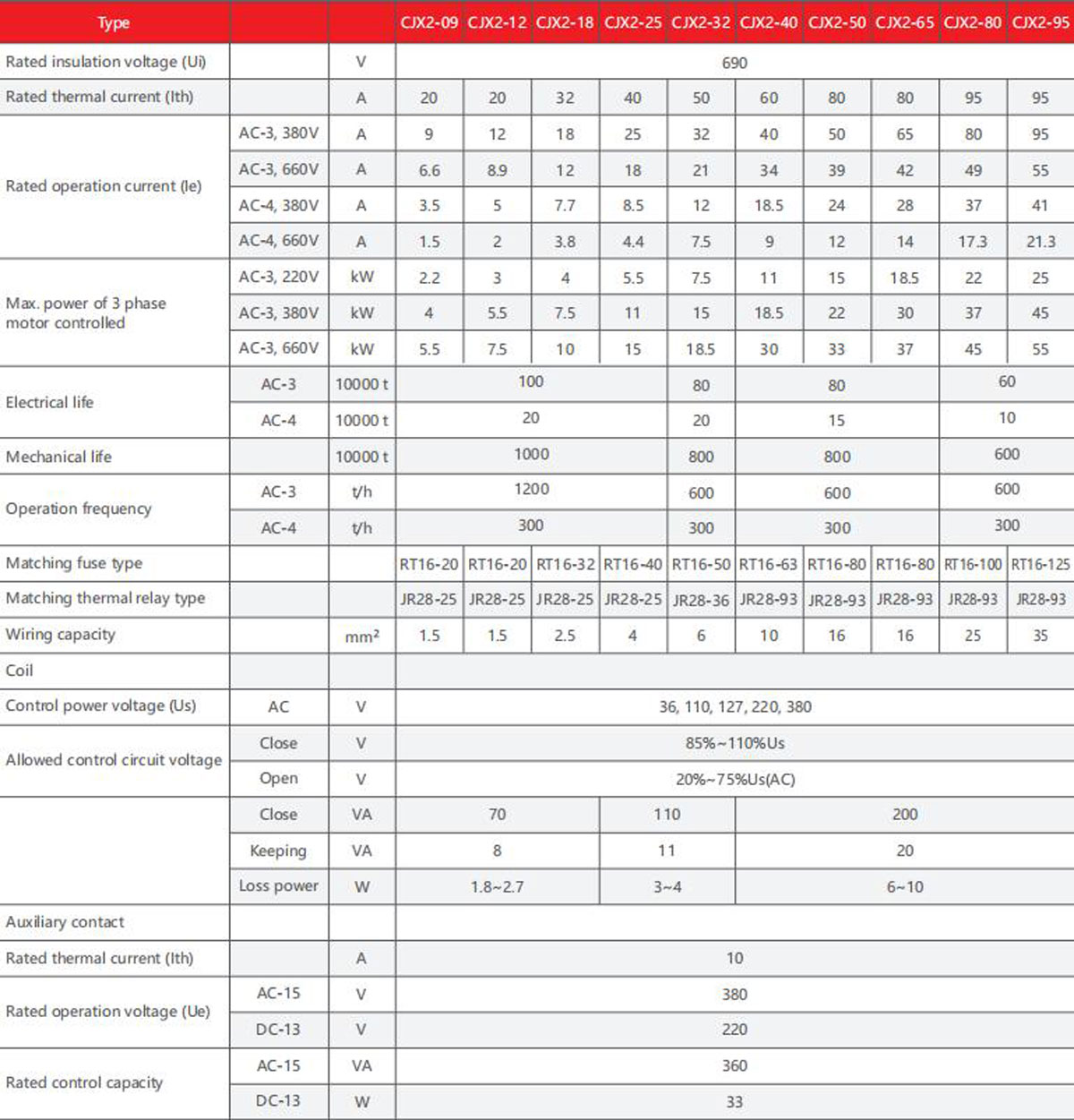

Specifications
| Parameter | Value |
|---|---|
| Model | CJX2-2510 |
| Rated Current (AC-3) | 25A |

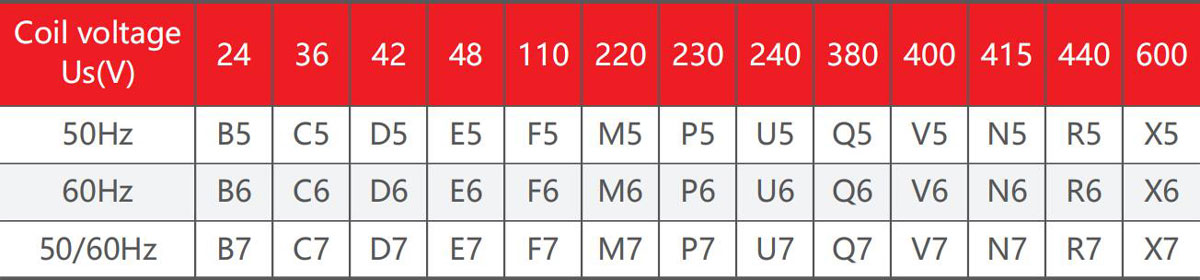

| Rated Voltage | AC 24V–380V |
| Poles | 3 Pole (3P) |
| Contact Configuration | 1NO + 1NC |
| Contact Material | Silver Alloy |
| Coil Material | Pure Copper |
| Housing | Flame Retardant |
| Insulation Voltage | Up to 1000V |
| Standards | IEC/EN 60947-4-1 |
| Mechanical Life | ≥ 50,000 operations |
| Electrical Life | ≥ 100,000 operations |
Features
- Silver alloy double break contacts for high reliability arc prevention
- Pure copper coil for stable electromagnetic performance
- Flame retardant housing with high insulation voltage up to 1000V
- Compact and lightweight design for easy installation
- Low power consumption for energy efficiency and sustainability
- High-quality junction box for safe and reliable connections
- Compatible with various control devices for enhanced versatility
- Suitable for harsh industrial environments
Product Details
- 25a Contactor
- 3 Phase Contactor
- Ac Contactor
- Contactor
- Contactor Switch
- Electrical Contactor
- Magnetic Contactor
- Modular Contactor
- Motor Contactor
- Starter Contactor
