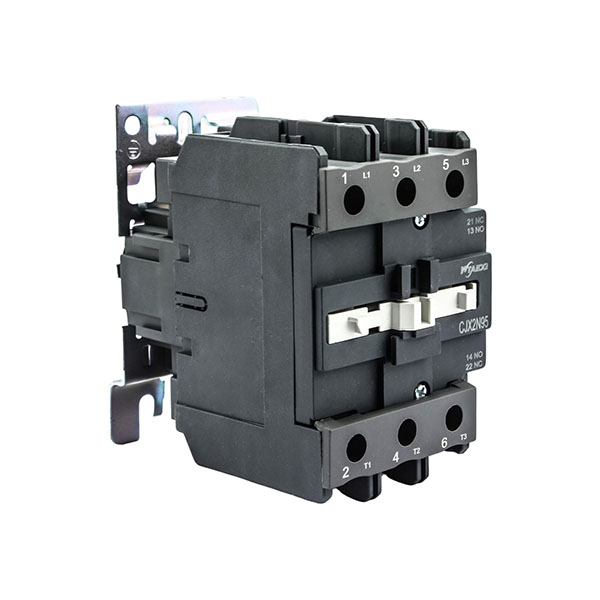

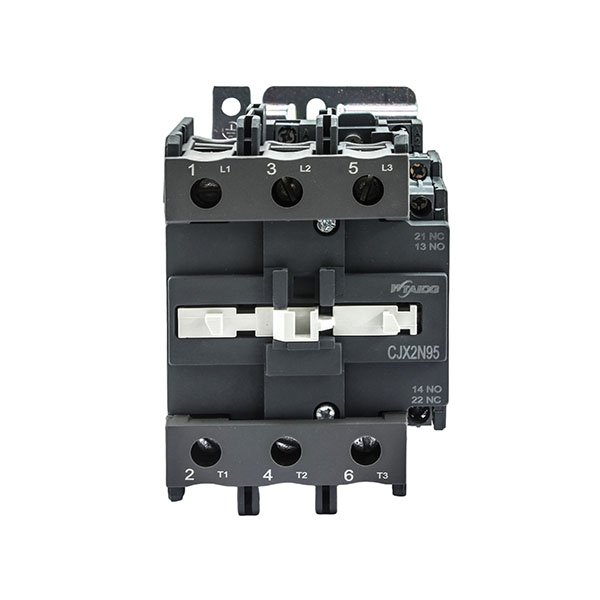

CJX2N95 Magnetic AC Contactor LC1N
Specifications
| Parameter | Value |
|---|---|
| Model | CJX2N95 |
| Rated Current (Ie AC-3) | 95A |
| Rated Voltage (Ue) | 690 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Poles | 3 Pole |
| Coil Voltage | AC 220V 50Hz |
| Contact Configuration | 1NO |
| Product Group | N50-N95 |
| Certifications | CCC, CE, RoHS, REACH |
| Standards | IEC 60947-1/4-1, GB14048.4, EN 60947-1/4-1 |
| Category | Rated Working Current | Rated Voltage | Poles | Rated Working Power AC-3 | Rated Working Power AC-3e |
|---|---|---|---|---|---|
| Specifications | Ie max AC-3 (Ues≤440 V) AC-3e (Ues≤440 V) Ie AC-1 |
690 V | 3 | 220/230V: 1.1kW,2.2kW,3kW,4kW,5.5kW,7.5kW,9kW,11kW,11kW,18.5kW,22kW,22kW 380/400V: 2.2kW,4kW,5.5kW,7.5kW,11kW,15kW,18.5kW,18.5kW,22kW,30kW,37kW,45kW 415/440V: 2.2kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,22kW,22kW,37kW,45kW,45kW 500V: 3kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,22kW,30kW,37kW,45kW,45kW 660/690V: 3kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,30kW,30kW,37kW,45kW,45kW |
220/230V: 1.1kW,2.2kW,3kW,4kW,5.5kW,7.5kW,9kW,11kW,11kW,18.5kW,22kW,22kW 380/400V: 2.2kW,4kW,5.5kW,7.5kW,11kW,15kW,18.5kW,18.5kW,22kW,30kW,37kW,45kW 415/440V: 2.2kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,22kW,22kW,37kW,45kW,45kW 500V: 3kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,22kW,30kW,37kW,45kW,45kW 660/690V: 3kW,4kW,5.5kW,9kW,11kW,15kW,18.5kW,30kW,30kW,37kW,45kW,45kW |
| Current Values | 6A,9A,12A,18A,25A,32A,38A,40A,50A,65A,80A,95A |
| Item | Description | CJX2 N06-N18 | CJX2 N25-N38 | CJX2 N40 | CJX2 N50-N95 |
|---|---|---|---|---|---|
| Rated Insulation Voltage (Ui) | IEC 60947-4-1 & GB14048 Standards Overvoltage Category III Pollution Level: 3 |
690 V | 690 V | 690 V | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | IEC 60947-4-1 | 6 kV | 6 kV | 6 kV | 6 kV |
| Product Certifications | – | CCC CE RoHS REACH |
– | – | – |
| Compliance Standards | – | IEC 60947-1/4-1 GB14048.4 EN 60947-1/4-1 |
– | – | – |
| Protection Level (Front Side) | IEC 60529 Standard Power Supply Wiring Coil Wiring |
IP20 IP20 |
– | – | – |
| Environmental Protection | IEC 60068 Standard Compliance | “TH” Rated | – | – | – |
| Ambient Temperature | Storage | -60°C to +80°C | – | – | – |
| Operation | -5°C to +55°C | – | – | – | |
| Under UC Conditions | -20°C to +70°C | – | – | – | |
| Maximum Operating Altitude | No Derating Required | 3000 m | – | – | – |
| Installation Orientation | Allowable Deviation | 30° from Vertical | – | – | – |
| Flame Retardancy | IEC 60695-2-1 Compliance Current-Carrying Components |
850°C | – | – | – |
| Impact Resistance (1/2 Sine Wave 11ms) | Open State (AC) | 7 gn | 6 gn | 6 gn | 6 gn |
| Open State (DC) | 5 gn | 5 gn | 5 gn | 5 gn | |
| Closed State | 10 gn | 10 gn | 10 gn | 7 gn | |
| Vibration Resistance (5-300Hz) | Open State (Z-axis) | 1.5 gn | 1.5 gn | 1.5 gn | 1.5 gn |
| Closed State (X-axis) | 3 gn | 3 gn | 3 gn | 3 gn |
Features
- Silver alloy contact for superior conductivity and arc suppression
- Pure copper coil for stable electromagnetic performance
- Flame retardant housing (850°C per IEC 60695-2-1) for enhanced safety
- 50,000+ mechanical operations lifecycle
- 100,000+ electrical endurance cycles
- <15ms arc extinction capability
- 96%+ conductive material purity
- 30% higher switching stability vs. industry benchmarks
- 40% reduced contact erosion via silver-nickel composite technology
- IP20 front-side protection
- Compliant with IEC/EN 60947, CCC, CE, RoHS, REACH
