- Overview: The WTM1 series DC molded case circuit breaker is a protective device used in DC circuits. It has a plastic shell that provides good insulation and protective performance.
- Key Characteristics: High power outage capability: able to quickly cut off high current loads in a short period of time, protecting the circuit from overload and short circuit faults. Reliable overload and short circuit protection: With overload and short circuit protection functions, it can timely cut off the current in case of circuit failure, prevent equipment damage and fire risk. Good environmental adaptability: It has good resistance to moisture, earthquake, vibration, and pollution, and is suitable for various harsh working environments. Easy to install and operate: Adopting modular design, easy to install and operate. Reliable electrical performance: It has good electrical performance, such as low arc voltage, low power consumption, high power outage capability, etc.
- Application: WTM1 series Molded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less, direct current rating voltage 1500V or less. Products according IEC60947-2, GB14048.2 standard.

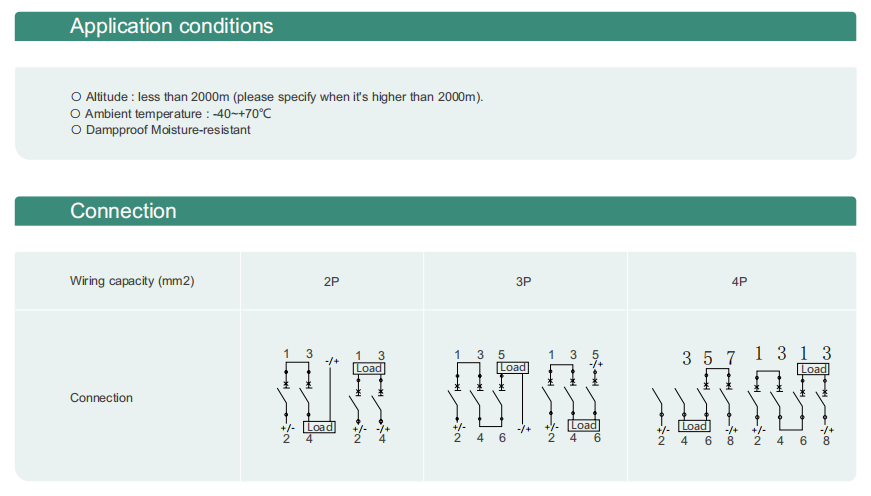

- Environmental Specifications
