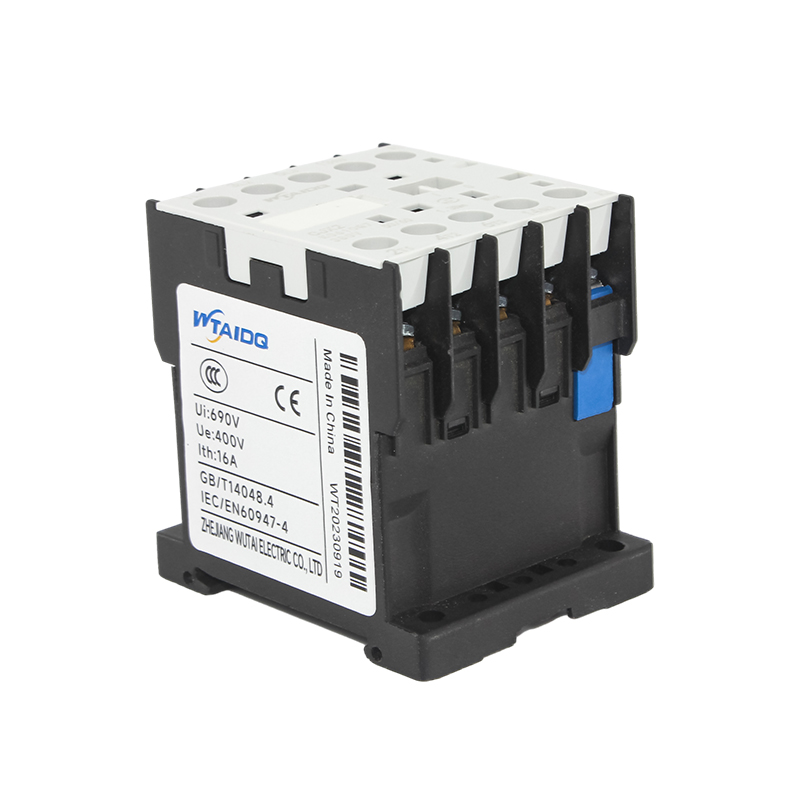

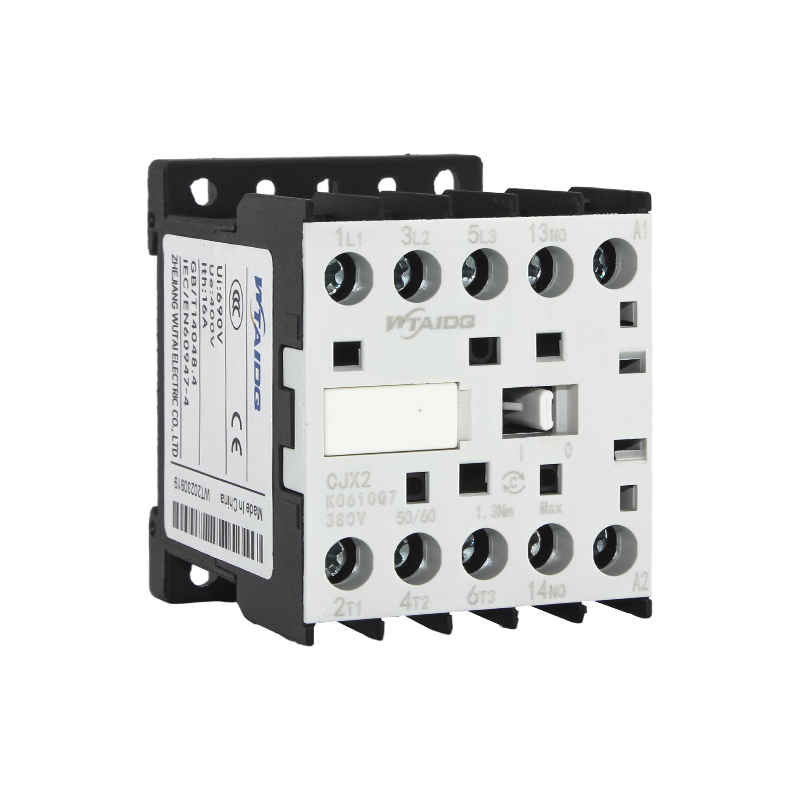

CJX2K-06 AC Contactor 6A IEC/UL

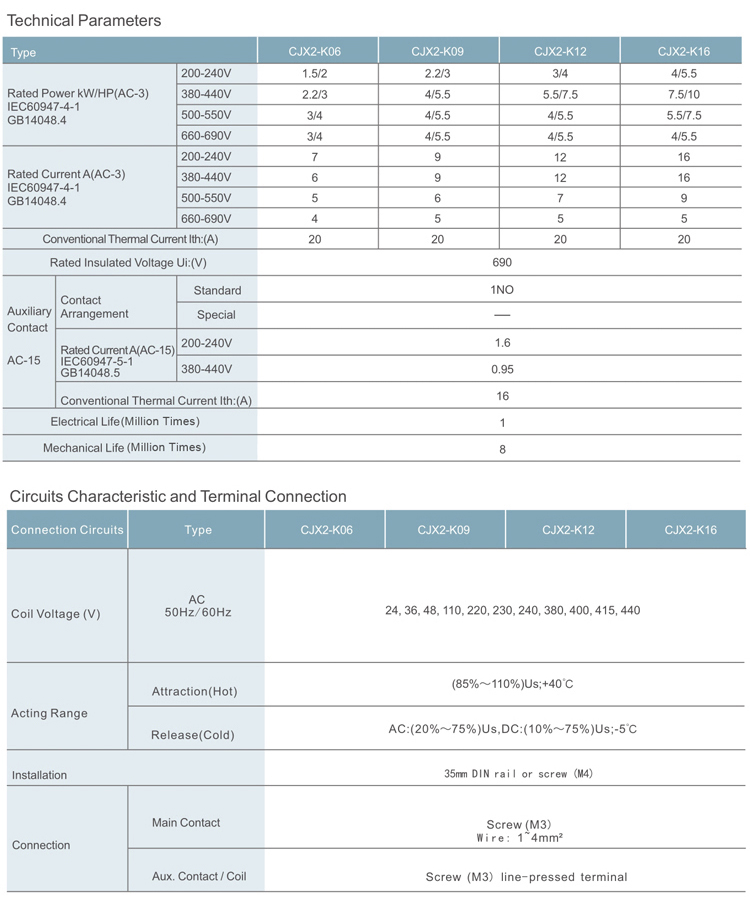

Specifications
| Parameter | Value |
|---|---|
| Rated Current (AC-3) | 6A |
| Rated Voltage | AC 24V–240V |
| Poles | 3 Pole |
| Mechanical Operations Lifecycle | 50,000+ |
| Electrical Endurance Cycles | 100,000+ |
| Arc Extinction Capability | <15ms |
| Conductive Material Purity | 96%+ |
| Contact Material | Silver-Nickel Composite |
| Certifications | IEC/EN 60947, UL |
Features
- Silver-nickel composite contact technology for superior conductivity and reduced erosion
- Sensitive action with reliable disconnection function for quick circuit cut-off
- Built-in overload protection — automatically disconnects on overload to protect equipment
- Compact modular design for easy installation in space-constrained environments
- Low power consumption and high insulation performance
- 30% higher switching stability than industry benchmarks
- 40% reduced contact erosion through proprietary contact technology
Product Detail Images
- 3 Pole Contactor
- Ac Contactor
- Contactor
- contactor switch
- Dc Contactor
- electrical contactor
- Magnetic Contactor
- Modular Contactor
- Motor Contactor
- starter contactor
