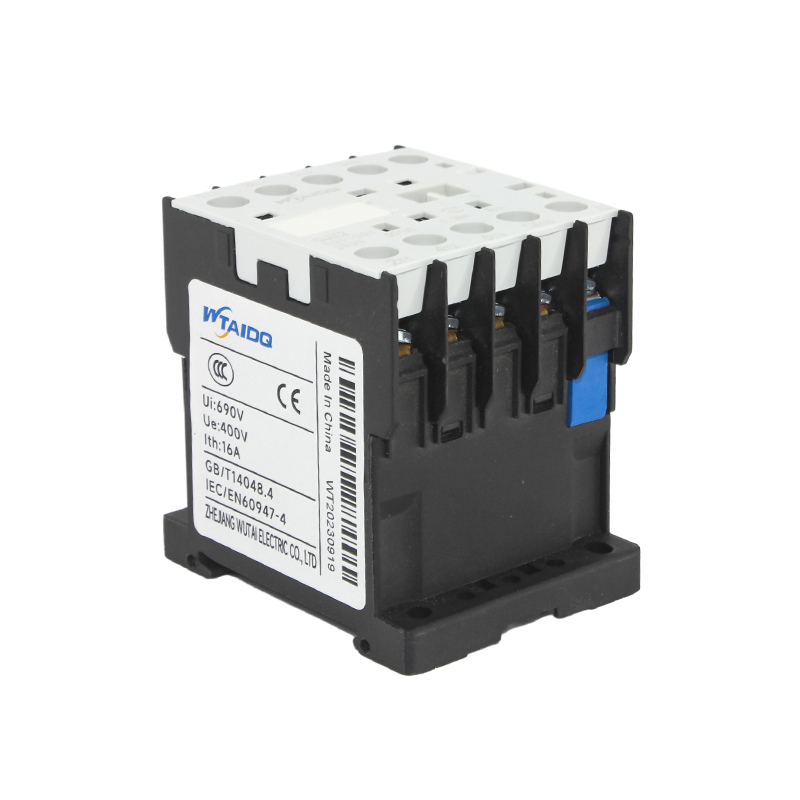

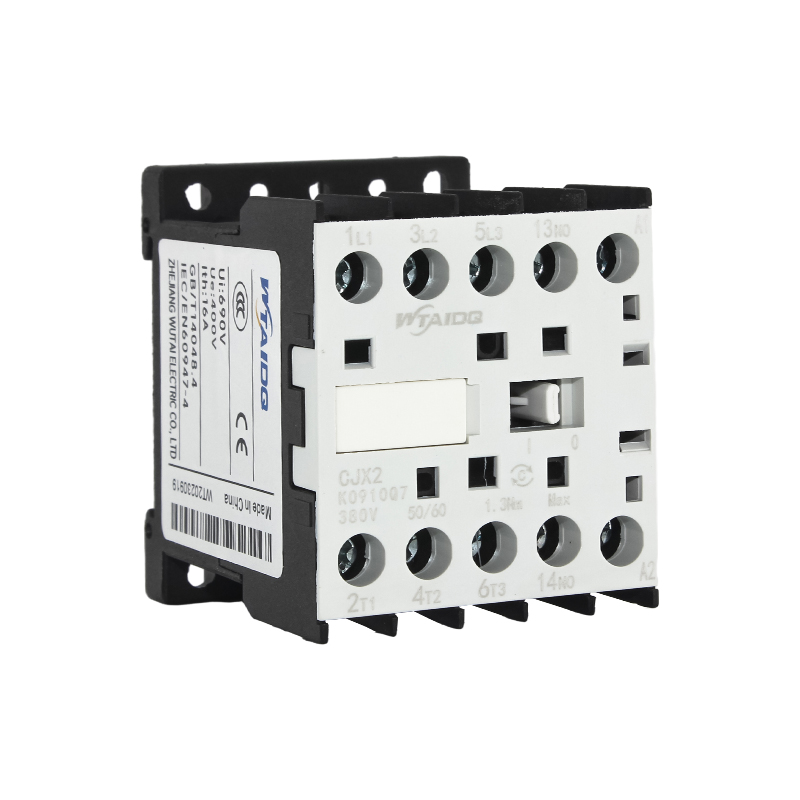

CJX2K-09 AC Contactor 9A IEC/UL

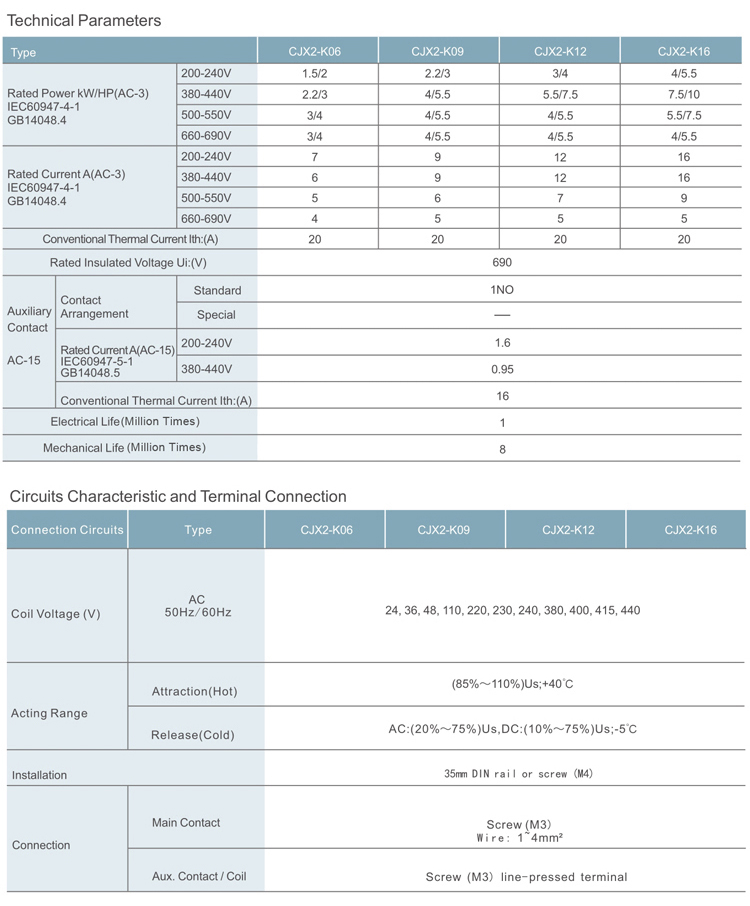

Specifications
| Parameter | Value |
|---|---|
| Rated Current (AC-3) | 9A |
| Rated Voltage | AC 24V–380V |
| Poles | 3 Pole |
| Mechanical Operations Lifecycle | 50,000+ |
| Electrical Endurance Cycles | 100,000+ |
| Arc Extinction Capability | <15ms |
| Conductive Material Purity | 96%+ |
| Contact Material | Silver-Nickel Composite |
| Certifications | IEC/EN 60947, UL |
Features
- Compact structure — takes up minimal space and is easy to install
- Modular design for simple assembly and installation
- Low power consumption and high insulation performance
- High load capacity — withstands large current and high voltage
- Low contact resistance with high contact breaking capacity
- Stable and reliable contact and disconnection operations
- 30% higher switching stability than industry benchmarks
Product Detail Images
- 3 Pole Contactor
- 9a Contactor
- Ac Contactor
- Contactor
- contactor switch
- Dc Contactor
- electrical contactor
- Magnetic Contactor
- Modular Contactor
- Motor Contactor
