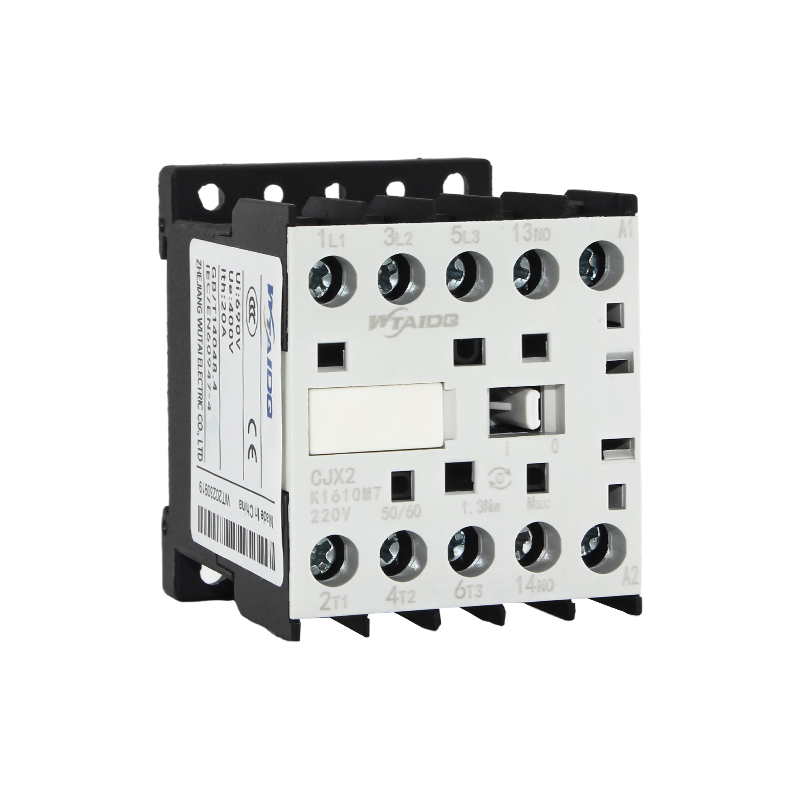

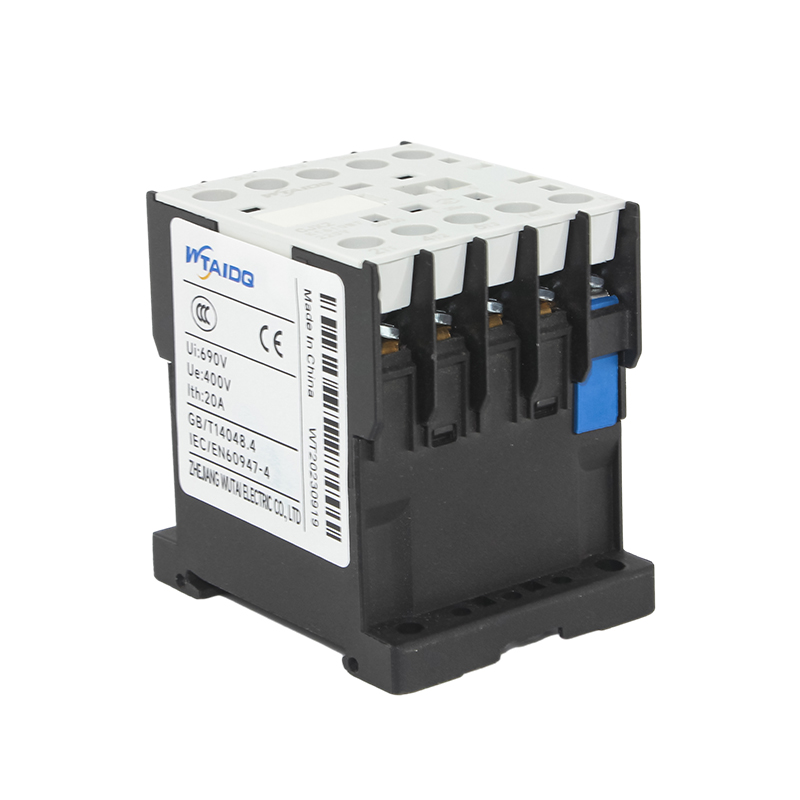

CJX2K-16 AC Contactor 16A IEC/UL

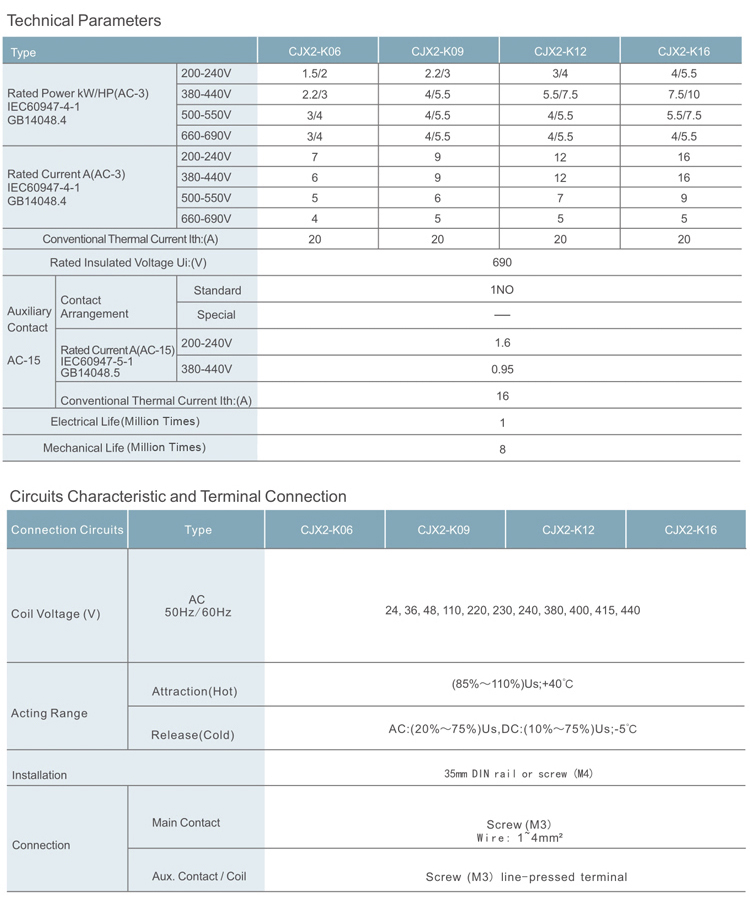

Specifications
| Parameter | Value |
|---|---|
| Rated Current (AC-3) | 16A |

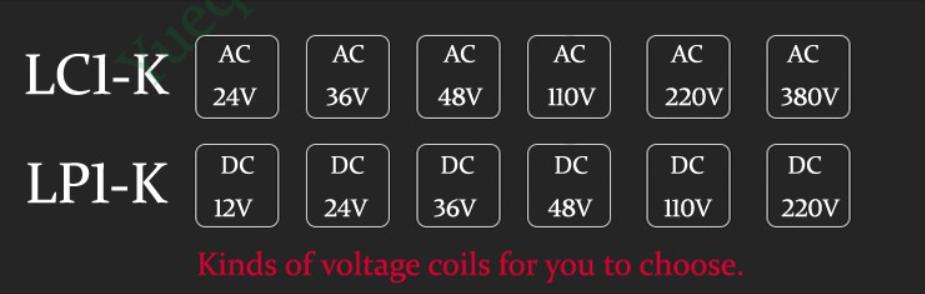

| Rated Voltage | AC 24V–380V |
| Poles | 3 Pole |
| Mechanical Operations Lifecycle | 50,000+ |
| Electrical Endurance Cycles | 100,000+ |
| Arc Extinction Capability | <15ms |
| Conductive Material Purity | 96%+ |
| Contact Material | Silver-Nickel Composite |
| Certifications | IEC/EN 60947, UL |
Features
- Suitable for starting, stopping, reversing and controlling AC motors
- Widely compatible with air conditioners, electric motors, lighting systems, and power tools
- Remote control capability via external control signals
- Built-in overload protection — auto-disconnects on excessive load
- Compact modular design for easy installation
- High switching stability with 40% reduced contact erosion
- 50,000+ mechanical operations lifecycle for long service life
Product Detail Images
- 3 Pole Contactor
- Ac Contactor
- Contactor
- contactor switch
- Dc Contactor
- electrical contactor
- Magnetic Contactor
- Modular Contactor
- Motor Contactor
- starter contactor
